Underground pipelines are among the most valuable assets in the oil and gas, water distribution, municipal utility, and industrial sectors. Although buried pipelines are hidden from view, they operate in complex environments that constantly expose steel surfaces to corrosion risks.
Soil is not simply dirt. It contains moisture, dissolved salts, oxygen, microorganisms, and varying levels of electrical conductivity. Together, these factors create ideal conditions for electrochemical corrosion. When corrosion develops on a pipeline, metal loss gradually reduces wall thickness, eventually leading to leaks, environmental contamination, costly repairs, and even safety hazards.
Protective coatings provide the first line of defense, but coatings alone cannot guarantee long-term protection. Damage during transportation, installation, ground movement, or decades of operation can expose bare steel to the surrounding environment. Even a small coating defect can become a localized corrosion hotspot.
For this reason, cathodic protection has become a critical component of modern pipeline integrity management programs.

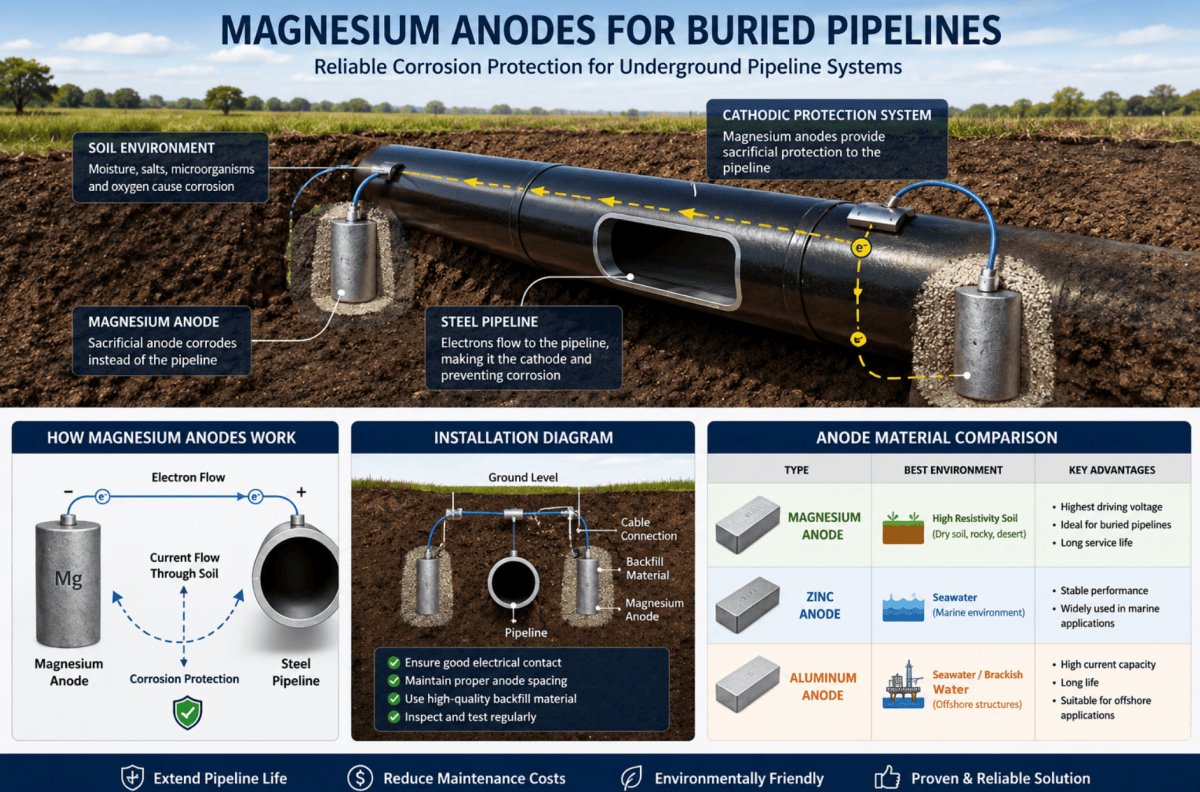

Magnesium anodes are sacrificial anodes made from magnesium-based alloys specifically designed to provide cathodic protection for buried or submerged metallic structures.
The principle behind magnesium anodes is straightforward. Magnesium is more electrochemically active than steel. When electrically connected to a steel pipeline and placed in the same electrolyte environment, magnesium naturally becomes the anode and corrodes preferentially.
As magnesium releases electrons, those electrons flow to the steel pipeline. This process shifts the electrochemical potential of the pipeline, preventing the steel from becoming an active corrosion site.
Instead of the pipeline corroding, the magnesium anode gradually sacrifices itself over time, which is why it is commonly referred to as a sacrificial anode.
Among commonly used sacrificial anode materials—zinc, aluminum, and magnesium—magnesium provides the highest driving voltage.
This higher potential difference allows magnesium anodes to deliver protective current even in environments where electrical resistance is relatively high.
This characteristic makes magnesium particularly suitable for buried natural gas pipelines, oil transmission pipelines, water supply pipelines, district heating systems, underground storage tanks, and municipal utility networks.
In soils with high resistivity, zinc or aluminum anodes may struggle to provide sufficient current output. Magnesium anodes can overcome this limitation and maintain effective protection levels.
Corrosion occurs when different areas of a metal surface develop anodic and cathodic reactions.
At anodic areas, iron atoms lose electrons and enter solution as ions. This is the location where metal loss occurs.
When a magnesium anode is connected to the pipeline, the electrochemical behavior changes significantly.
The magnesium becomes the new anodic material:
Mg → Mg²⁺ + 2e⁻
The released electrons travel through the metallic connection and enter the steel pipeline.
As a result, the pipeline becomes cathodic, corrosion reactions are suppressed, steel dissolution is minimized, and service life is extended.
High Driving Potential
One of the most significant advantages of magnesium anodes is their high driving voltage. This enables reliable protection in dry soils, rocky terrain, desert environments, and high-resistivity backfill conditions.
Independent Operation
Unlike impressed current cathodic protection systems, magnesium anodes do not require electrical power, rectifiers, transformer units, or remote monitoring systems.
Cost-Effective for Small and Medium Pipelines
For shorter pipelines and isolated assets, magnesium anodes often provide a lower total ownership cost compared to impressed current systems.
Reliable Protection
Because there are no moving components or electrical control systems, magnesium anodes are highly reliable even in remote locations.
Several factors influence system performance, including soil resistivity, coating quality, pipeline diameter, pipeline length, and desired service life.
A well-coated pipeline may require only a small amount of cathodic protection current, while poor coating conditions significantly increase current demand and anode consumption rates.
Many operators design systems for service lives ranging from 10 to 30 years, depending on project requirements.
Most pipeline projects utilize prepackaged magnesium anodes surrounded by gypsum, bentonite, and sodium sulfate backfill materials.
These materials improve electrical contact with the surrounding soil and enhance current distribution.
Anodes should be installed according to engineering calculations to ensure uniform protection across the pipeline. All cable connections should be properly welded, insulated, and tested.
Magnesium anodes are widely used in oil and gas pipelines, municipal water systems, underground storage tanks, industrial facilities, and utility infrastructure.
They provide reliable corrosion protection in environments where impressed current systems may be impractical or unnecessary.
As pipeline networks continue to expand worldwide, corrosion prevention remains a major engineering challenge.
New developments in magnesium alloy technology are improving current efficiency, material utilization, service life, and environmental performance.
For many buried pipeline applications, magnesium anodes remain one of the most reliable, economical, and proven cathodic protection solutions available today.
Magnesium anodes provide the highest driving voltage among sacrificial anode materials, making them highly effective in high-resistivity soils where zinc or aluminum anodes may not provide sufficient protection current.
The service life of magnesium anodes depends on soil conditions, current demand, anode size, and coating quality. Properly designed systems can provide protection for 10 to 30 years.
Magnesium anodes have a higher electrochemical potential and are typically used in high-resistivity soils, while zinc anodes are more commonly used in seawater and low-resistivity environments.
Yes. In fact, magnesium anodes perform best when combined with high-quality pipeline coatings because the coating reduces current demand and extends anode life.
No. Magnesium anodes operate as sacrificial anodes and do not require rectifiers, transformers, or electrical power supplies.
Magnesium anodes are widely used in oil and gas pipelines, water distribution systems, underground storage tanks, municipal infrastructure, and industrial facilities.
Engineers calculate current demand based on pipeline surface area, coating condition, soil resistivity, and desired service life before selecting the appropriate number of anodes.
Not always. Magnesium anodes are ideal for small and medium-sized structures, while impressed current systems are often preferred for large pipelines and high-current applications.
