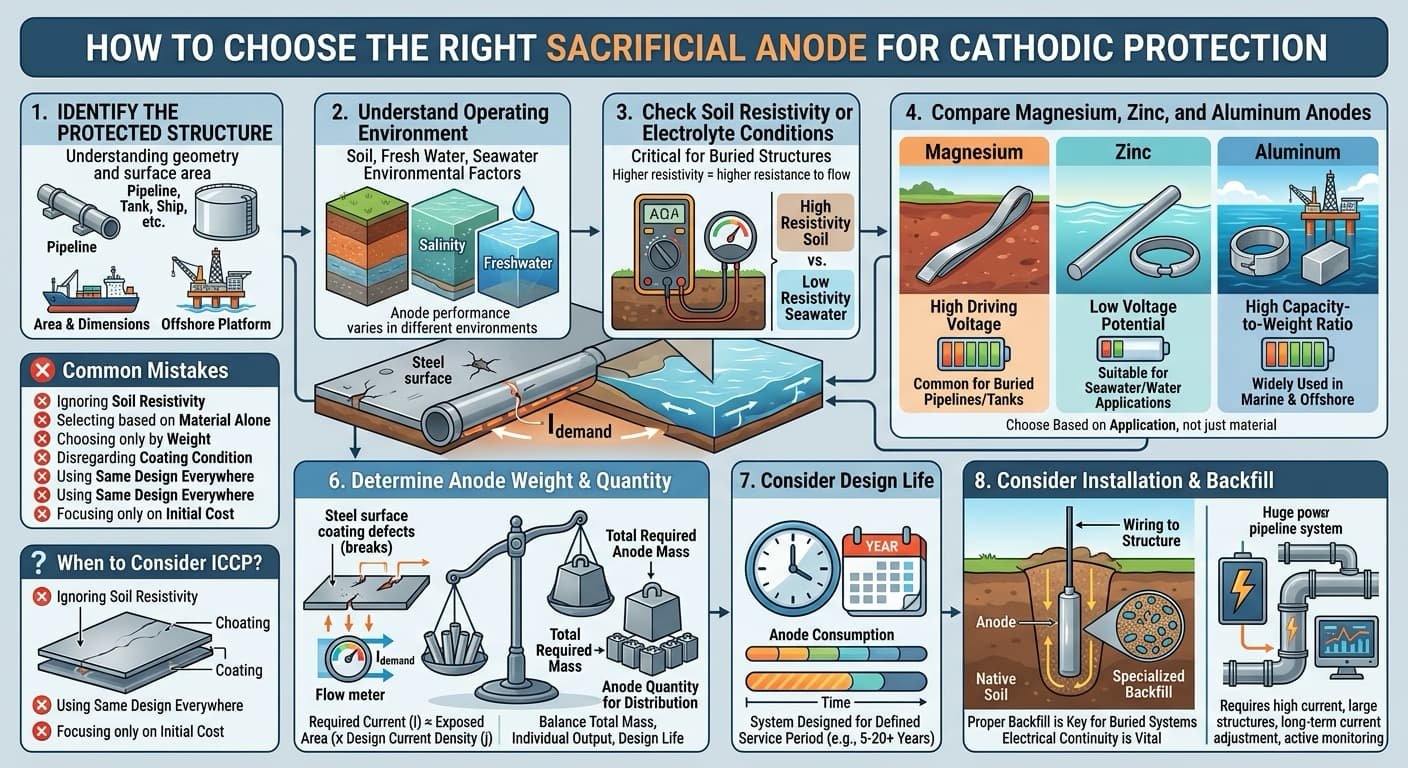

How to Choose the Right Sacrificial Anode for Cathodic Protection

Selecting a sacrificial anode is not simply a matter of choosing magnesium, zinc, or aluminum from a product catalog. The correct anode depends on the structure being protected, the surrounding electrolyte, required current output, design life, installation conditions, and the amount of exposed steel.

A sacrificial anode that works well in seawater may not be the right choice for a buried pipeline. Similarly, an anode suitable for a small tank may not provide enough current for a large underground structure.

For this reason, sacrificial anode selection should be treated as an engineering decision rather than a simple material choice.

This guide explains the main factors engineers and corrosion specialists should consider when selecting a sacrificial anode for cathodic protection.

Why Sacrificial Anode Selection Matters

Sacrificial anodes protect steel by providing an electrochemical current that shifts the protected structure toward a more negative potential.

The anode gradually consumes itself while the steel structure is protected.

The basic concept is simple, but the actual performance of a cathodic protection system depends on several variables:

• Anode material

• Electrolyte conductivity

• Soil resistivity

• Required protection current

• Coating condition

• Structure surface area

• Anode mass

• Anode geometry

• Installation method

• Design life

• Electrical continuity and isolation

If the anode does not provide sufficient current, parts of the structure may remain inadequately protected.

If the anode is unnecessarily large or numerous, the system may become more expensive and difficult to install without providing a meaningful engineering benefit.

The goal is therefore to select an anode system that provides the required protection current for the intended service period under the actual operating conditions.

What Information Should Be Collected Before Selecting an Anode?

Before selecting an anode, gather as much information about the cathodic protection application as possible.

For a preliminary engineering assessment, the following information is particularly useful:

The more complete the application information, the more reliable the anode selection can be.

Step 1: Identify the Protected Structure

Start by identifying exactly what needs to be protected.

Common applications include:

• Buried pipelines

• Storage tanks

• Water tanks

• Steel structures

• Heat exchangers

• Marine structures

• Offshore components

• Ship hulls

• Piers and other submerged steel structures

The size and geometry of the structure are important because cathodic protection current is generally related to the amount and condition of exposed metal.

A small steel tank and a long buried pipeline may both use sacrificial anodes, but their protection requirements can be very different.

For pipelines, for example, coating condition is especially important.

A well-coated pipeline may require relatively little current because most of the steel surface is electrically isolated from the soil.

A damaged or poorly coated pipeline may require substantially more current.

Therefore, surface area alone is not enough to determine the required anode capacity.

Step 2: Understand the Operating Environment

The environment surrounding the anode has a major influence on its performance.

Typical environments include:

• Soil

• Freshwater

• Brackish water

• Seawater

• Process water

• Other conductive electrolytes

Anode materials do not behave identically in all environments.

For buried structures, soil characteristics are particularly important.

For submerged structures, water conductivity, temperature, salinity, flow conditions, and other environmental factors may affect anode performance.

This is why the question:

"Which sacrificial anode is best?"

does not have one universal answer.

A better question is:

"Which sacrificial anode provides suitable electrochemical performance under my actual operating conditions?"

Step 3: Check Soil Resistivity or Electrolyte Conditions

For buried pipelines, tanks, and other underground structures, soil resistivity is one of the most useful parameters for preliminary anode selection.

In general, higher soil resistivity makes it more difficult for protective current to flow through the electrolyte.

This can affect the current output of an individual anode and the overall configuration required for the cathodic protection system.

For marine applications, the situation is different because seawater is generally much more conductive than many soils.

This is one reason why an anode material and configuration suitable for seawater should not automatically be transferred to an underground application.

If possible, obtain measured soil resistivity data rather than relying only on generalized regional assumptions.

Step 4: Compare Magnesium, Zinc, and Aluminum Anodes

The three commonly discussed sacrificial anode materials are magnesium, zinc, and aluminum alloys.

Their suitability depends strongly on the environment and application.

Magnesium Anodes

Magnesium anodes are commonly considered for applications where a relatively high driving voltage is beneficial.

They are frequently associated with buried structures, including certain underground pipeline and tank applications, particularly where soil conditions require higher driving voltage.

However, magnesium is not automatically the correct choice for every buried structure.

Soil resistivity, current requirement, design life, and anode configuration should still be evaluated.

Zinc Anodes

Zinc anodes are widely used in marine and water-related cathodic protection applications.

They can be suitable where the surrounding electrolyte provides favorable conductivity and where the electrochemical characteristics of zinc meet the protection requirements.

Zinc may also be considered for certain soil applications, depending on the design conditions.

Aluminum Anodes

Aluminum alloy anodes are widely used in marine environments because of their useful electrochemical characteristics and relatively high capacity-to-weight ratio.

They are commonly considered for seawater applications such as:

• Ships

• Offshore structures

• Marine pipelines

• Subsea equipment

• Other submerged steel structures

The exact alloy composition is important because commercial aluminum sacrificial anodes are normally engineered alloys rather than pure aluminum.

Step 5: Estimate Current Demand

Once the structure and environment are understood, the next question is:

How much protective current is required?

Current demand depends on several factors, including:

• Exposed steel surface area

• Coating condition

• Environmental conditions

• Required protection criteria

• Current density assumptions

• Temperature

• Electrical continuity

A simplified engineering relationship can be expressed as:

Required current = exposed surface area × design current density

For example, if a structure has an effective exposed area of 100 m² and the selected design current density is 20 mA/m²:

100 m² × 0.020 A/m² = 2.0 A

This is only a simplified example.

Actual cathodic protection design should use appropriate engineering criteria for the specific structure and environment.

The current requirement is important because an anode's physical weight alone does not tell you whether the system will provide adequate protection.

Step 6: Determine Anode Weight and Quantity

After estimating the current requirement, the next step is to determine how much anode material is required.

A simplified relationship for estimating anode mass can be expressed as:

Anode mass ≈ required current × design life ÷ practical anode capacity

In a real design, additional factors need to be considered, including:

• Anode utilization factor

• Electrochemical efficiency

• Current distribution

• Anode resistance

• Design safety margin

• Operating environment

• Actual alloy performance

The number of anodes is also important.

For example, one very large anode may theoretically provide sufficient capacity, but several smaller anodes may provide better current distribution and installation flexibility.

Therefore, anode quantity is not determined only by total weight.

Location and electrical performance also matter.

Step 7: Consider Design Life

Cathodic protection systems are normally designed for a defined service period.

The design life could vary considerably depending on the application.

For example, a temporary structure may have a relatively short design period, while a buried pipeline or permanent marine structure may require protection for many years.

If the anode consumption rate is too high, the anodes may need to be replaced earlier than planned.

If the selected anode mass is excessive, the system may be unnecessarily expensive or difficult to install.

The selection should therefore balance:

Current output + anode capacity + design life + installation requirements

rather than focusing on anode weight alone.

Step 8: Consider Installation and Backfill

Installation conditions can significantly affect sacrificial anode performance.

For buried applications, anodes may be installed with specialized backfill materials designed to provide a suitable and relatively stable environment around the anode.

The backfill can influence:

• Electrical contact

• Moisture availability

• Current distribution

• Anode utilization

• Installation performance

The physical location of the anode also matters.

The anode must be electrically connected to the protected structure, while the surrounding electrolyte must provide an appropriate path for current flow.

Poor electrical connections, unsuitable installation locations, or unexpected soil conditions can reduce the effectiveness of an otherwise correctly selected anode.

Common Sacrificial Anode Selection Mistakes

Several mistakes occur repeatedly in preliminary anode selection.

Choosing an anode based only on material

Simply asking whether magnesium, zinc, or aluminum is "better" is usually insufficient.

The application determines the appropriate material.

Ignoring soil resistivity

For buried structures, soil resistivity can strongly influence anode performance.

Ignoring it may result in an unsuitable system design.

Selecting anodes only by weight

A heavier anode does not automatically mean better protection.

Current output and electrical performance are equally important.

Ignoring coating condition

A damaged coating can significantly increase the amount of exposed steel that needs protection.

The same pipeline geometry can therefore have very different current requirements depending on coating condition.

Using the same design for every project

Cathodic protection systems should be designed for the actual structure and environment.

A design developed for seawater should not automatically be applied to a buried pipeline.

Focusing only on initial cost

Anode selection should also consider:

• Service life

• Replacement requirements

• Installation cost

• Maintenance access

• Reliability

• Total system requirements

A slightly different initial design may result in a very different maintenance requirement over the service period.

When Should You Consider ICCP Instead?

Sacrificial anodes are not the only cathodic protection technology.

Another major approach is impressed current cathodic protection (ICCP).

Sacrificial anode systems generate protective current through the electrochemical potential difference between the anode and the protected structure.

ICCP systems use an external DC power source to drive protective current.

ICCP may be considered when:

• The required protection current is relatively high

• The structure is very large

• Long-term current adjustment is required

• Environmental conditions make sacrificial anodes impractical

• Monitoring and control requirements justify a powered system

The appropriate system depends on the engineering requirements of the application.

For smaller or appropriately sized structures, sacrificial anodes can provide a comparatively simple passive protection approach.

What Information Should You Send to an Anode Manufacturer?

If you want an anode manufacturer to recommend a suitable configuration, providing detailed project information can significantly improve the quality of the technical response.

Useful information includes:

1. Protected structure
   Pipeline, tank, ship, offshore structure, water tank, etc.

2. Structure dimensions
   Length, diameter, surface area, or drawings.

3. Material
   Carbon steel, cast iron, or other metal.

4. Coating condition
   New coating, aged coating, damaged coating, or estimated coating breakdown.

5. Environment
   Soil, freshwater, seawater, brackish water, or another electrolyte.

6. Soil resistivity
   Especially important for buried structures.

7. Required design life
   For example, 5, 10, 15, or 20 years.

8. Required protection current
   If already determined by the project engineer.

9. Installation method
   Buried, submerged, tank-mounted, bracelet, welded, bolted, etc.

10. Preferred dimensions or installation limitations
    Available installation space can influence the anode geometry.

With this information, an anode manufacturer can better evaluate the required material, dimensions, quantity, connection configuration, and other technical parameters.

Conclusion

Choosing a sacrificial anode is a process of matching anode electrochemical performance to the actual cathodic protection requirements of the structure.

The main factors to consider include:

• Protected structure

• Surface area

• Coating condition

• Environment

• Soil resistivity

• Required current

• Anode material

• Anode capacity

• Design life

• Quantity and geometry

• Installation conditions

Magnesium, zinc, and aluminum each have applications where their characteristics can be useful. The correct selection depends on the complete operating environment rather than on the material name alone.

For a preliminary selection, the most useful starting point is usually a combination of structure information, environmental conditions, current requirements, and design life.

A manufacturer can then use these parameters to develop a more appropriate anode specification for the project.

6. FAQ

What is the best sacrificial anode for a buried pipeline?

There is no single anode material that is best for every buried pipeline. Magnesium is commonly considered for many underground applications because of its relatively high driving voltage, but the final selection should consider soil resistivity, coating condition, current demand, and design life.

How do I choose between magnesium and zinc anodes?

Compare the operating environment, soil or electrolyte conductivity, required driving voltage, current demand, and design life. Magnesium and zinc can perform differently under different conditions, so the application should determine the selection.

How many sacrificial anodes do I need?

The required number depends on the total current demand, individual anode output, anode capacity, design life, and current distribution. Anode quantity should be determined as part of the overall cathodic protection design rather than from structure size alone.

Does soil resistivity affect sacrificial anode selection?

Yes. Soil resistivity can affect the ability of protective current to flow between the anode and the protected structure. It is therefore an important parameter for many underground cathodic protection applications.

How long does a sacrificial anode last?

Service life depends on anode mass, current output, electrochemical efficiency, operating environment, and actual current demand. A larger anode does not necessarily provide better protection if the system is incorrectly designed.

Can sacrificial anodes be used in seawater?

Yes. Sacrificial anodes are widely used for marine and submerged steel structures. Aluminum and zinc alloy anodes are commonly considered for seawater applications, depending on the design requirements.

What information does an anode manufacturer need?

A manufacturer will normally benefit from information such as structure dimensions, material, coating condition, environment, soil resistivity, required design life, current requirement, installation method, and available installation space.

When should ICCP be considered instead of sacrificial anodes?

ICCP may be considered when a structure requires relatively high protective current, long-term current adjustment, or more active monitoring and control. The choice depends on the specific engineering requirements.
