The most important difference is the driving potential.
Magnesium generally provides a stronger driving force, which is one reason it is frequently selected for high-resistivity soil conditions.
Zinc has a lower driving potential and is often better suited to conductive environments, particularly marine applications.

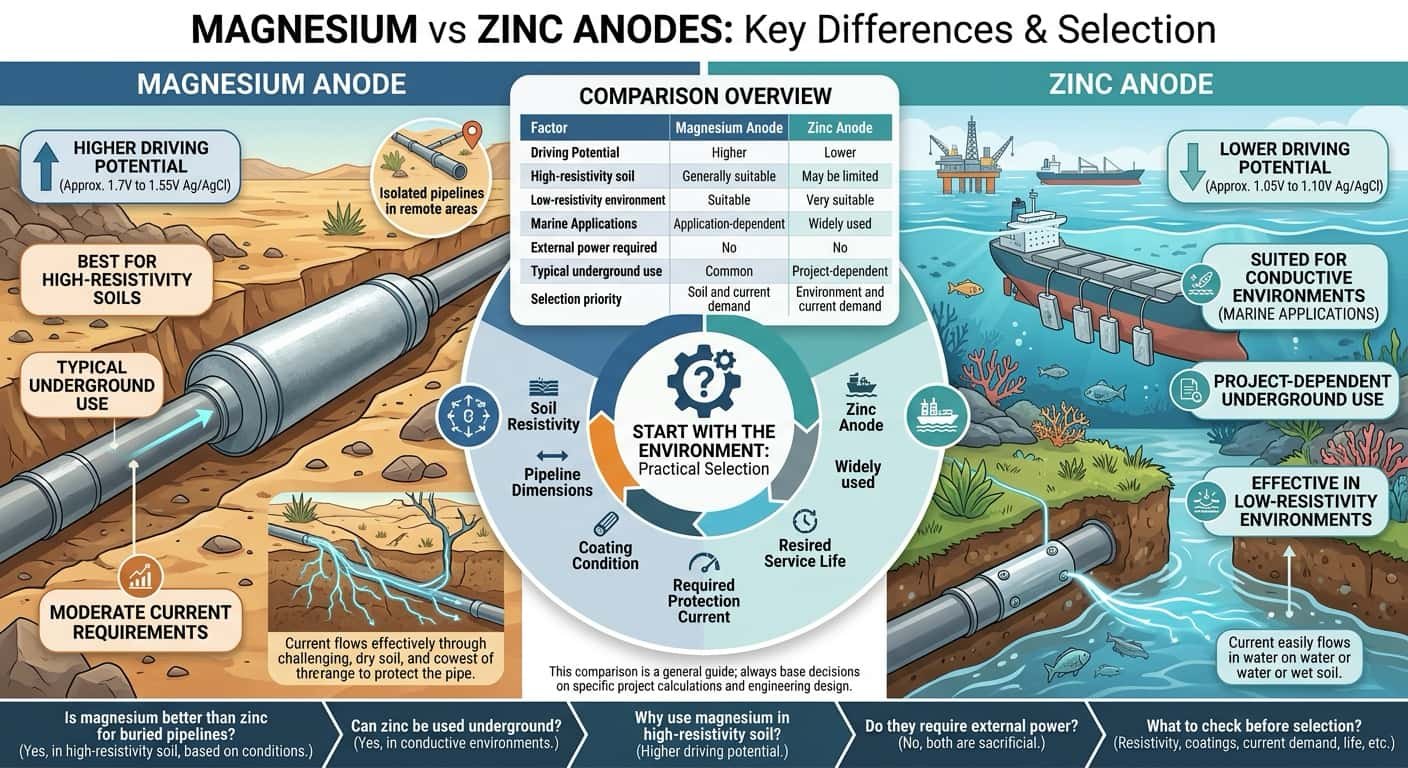

The comparison can be summarized as follows:
| Factor | Magnesium Anode | Zinc Anode |
|---|---|---|
| Driving potential | Higher | Lower |
| High-resistivity soil | Generally suitable | May be limited |
| Low-resistivity environment | Suitable | Very suitable |
| Marine applications | Application-dependent | Widely used |
| External power required | No | No |
| Typical underground use | Common | Project-dependent |
| Selection priority | Soil and current demand | Environment and current demand |
This table should not be treated as a substitute for engineering calculations. Actual performance depends on the specific alloy, environment, anode dimensions, backfill, electrical connections, and pipeline condition.
Soil resistivity is one of the first parameters engineers should investigate when selecting a sacrificial anode.
High-resistivity soil restricts the movement of protective current. Under these conditions, a higher driving potential can become especially important.
Magnesium is therefore frequently considered for pipelines installed in dry soil, rocky ground, desert regions, or other environments where soil resistivity is relatively high.
In contrast, conductive soil provides an easier path for current. Under suitable conditions, zinc can provide effective protection without requiring the higher driving potential associated with magnesium.
For this reason, a soil resistivity survey should normally form part of the design process rather than relying solely on general rules of thumb.
Anode selection cannot be separated from pipeline coating condition.
A pipeline with a high-quality coating exposes relatively little bare steel to the electrolyte. Its cathodic protection current requirement may therefore be comparatively low.
If the coating has deteriorated, however, exposed steel areas increase and the required protective current can rise significantly.
This can change the required anode quantity and service life.
For an existing pipeline, engineers should consider coating condition, historical inspection results, operating environment, and measured pipe-to-soil potentials before deciding whether a magnesium or zinc system is appropriate.
Magnesium is often a strong candidate when:
The pipeline is buried underground.
Soil resistivity is relatively high.
The pipeline has a moderate current requirement.
No external power source is desirable.
The structure is isolated or located in a remote area.
A simple sacrificial anode system is preferred.
For large pipelines with substantial current requirements, however, an impressed current cathodic protection system may provide greater flexibility.
Zinc can be attractive when:
The environment has relatively low electrical resistance.
The protected structure is located in seawater or another conductive electrolyte.
The required current output is compatible with zinc anode characteristics.
Long-established marine cathodic protection practices are preferred.
The final decision should always be based on project-specific calculations rather than assuming that one anode material is universally better.
The most reliable approach is to begin with the operating environment and work toward the anode selection.
A typical assessment should consider:
Soil resistivity
Pipeline dimensions
Coating condition
Required protection current
Desired service life
Anode dimensions and alloy
Installation arrangement
Inspection and monitoring requirements
This approach helps prevent a common mistake in cathodic protection projects: choosing an anode first and attempting to make the system design fit afterward.
Magnesium and zinc anodes can both provide effective sacrificial cathodic protection, but they are designed for different operating conditions.
Magnesium's higher driving potential makes it particularly useful for many buried pipelines in high-resistivity soils, while zinc is widely established in conductive and marine environments.
The better question is therefore not “Which anode is stronger?” but “Which anode is appropriate for this environment and current requirement?”
A properly designed cathodic protection system should consider soil conditions, coating quality, current demand, anode consumption, and required service life together. When these factors are evaluated systematically, magnesium or zinc can each provide reliable corrosion protection for the right application.
Magnesium is often more suitable for buried pipelines in high-resistivity soils because of its higher driving potential. However, the final selection should be based on soil conditions, current demand, coating condition, and required service life.
Yes. Zinc can be used when the soil environment is sufficiently conductive and the required protection current can be achieved within the design conditions.
Magnesium has a relatively high driving potential, which helps provide useful protective current when soil resistance makes current distribution more difficult.
No. Both are sacrificial anode systems and generate protective current through their natural electrochemical potential difference.
Important factors include soil resistivity, pipeline dimensions, coating condition, current demand, desired service life, anode characteristics, installation conditions, and monitoring requirements.
Not in every application. Magnesium anodes can be effective for many small and medium-sized structures, while impressed current systems may be more suitable for large structures with higher current requirements.
